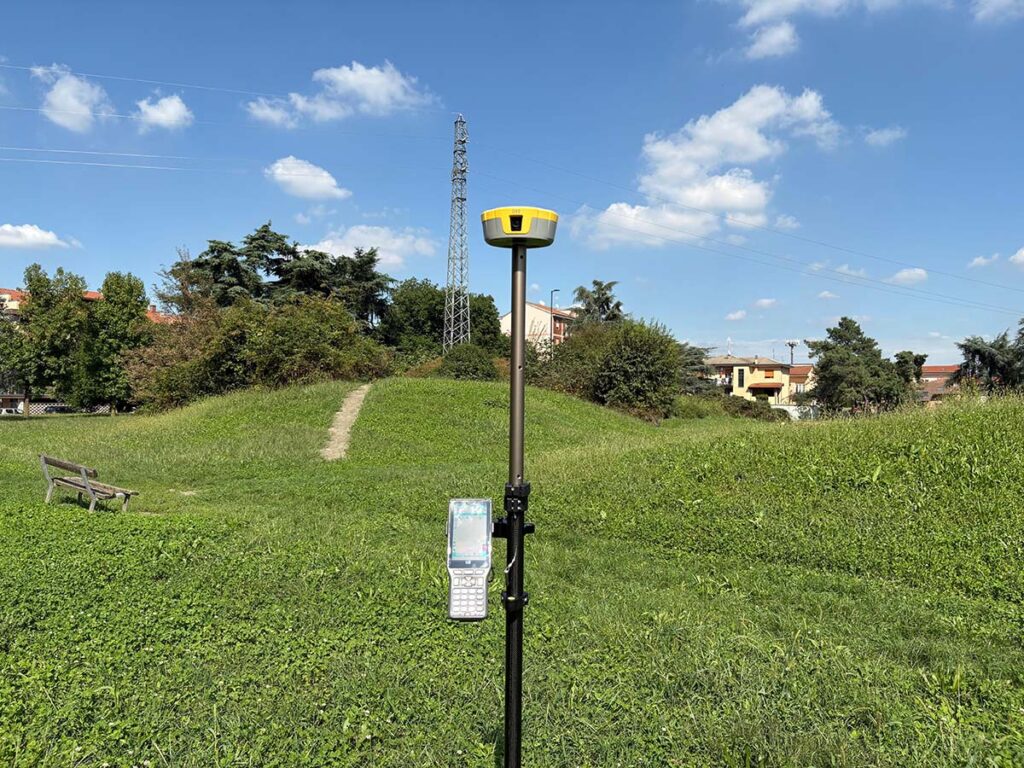

G90 Dual Cameras GNSS Receiver

High-precision multi-constellation GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS and SBAS with 1,408 channels.

RTK with IMU-based tilt compensation up to ±60°, reaching typical RTK accuracy on the order of 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically.

Integrated 64 GB internal memory for storing survey data directly in the receiver.

Rugged field design: IP67 dust and water protection, impact resistance to about 2 m, and operating temperature roughly from −40 °C to +65 °C.

Connectivity includes 4G modem, Bluetooth 5.2 and Wi‑Fi plus a web interface accessible from smartphones, tablets or PCs.

Internal battery around 7,000 mAh supports up to about 10 hours of continuous operation.

Dual cameras: a downward 5 MP camera with wide field of view and a rear 2 MP camera to support positioning and visual documentation.

Integrated green laser distance meter with millimetre-level accuracy over a typical working range up to about 30 m.

Augmented Reality (AR) stakeout functions provide visual guidance in the field for efficient set-out in complex environments.

Category: GNSS
